Telescopics

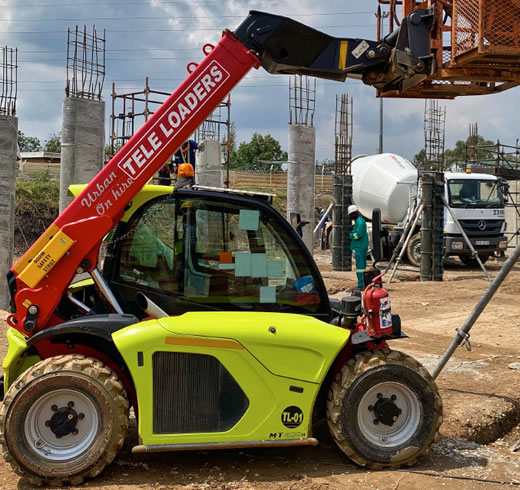

COMPACT TELE 4.20m x 2ton

Technical Spec

  • Max Capacity: 2000kg
  • Max Height: 4200mm
  • Max Reach: 2650mm
  • Load at Max Reach: 900kg
  • Cab Height: 1900mm
  • Width: 1500mm
  • Length: 3630mm
  • Weight: 4260kg
  • Fuel tank capacity: 60 Lt

Wheelbase x Width = Foorprint
2130mm x 1170mm = 2.49sqm

Click on an image below to enlarge

Attachments

  • CONCRETE SKIPS
  • PALLET FORKS
  • MATERIALS LOADING BUCKET
  • 2.5 TON JIB
  • BIN COLLECTION SWEEPER
  • IDEAL IN CONFINED AREAS, MULTI-STORY, WAREHOUSING AND INDUSTRIAL

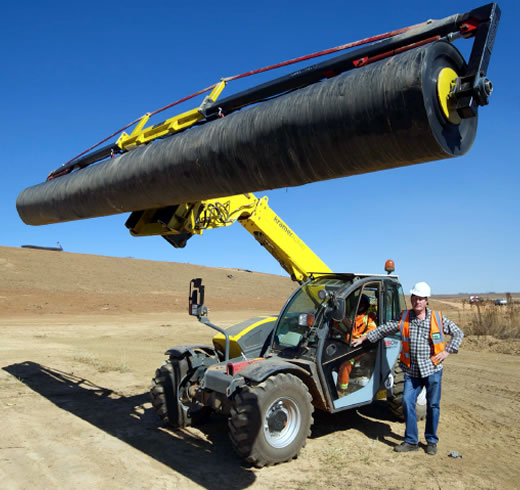

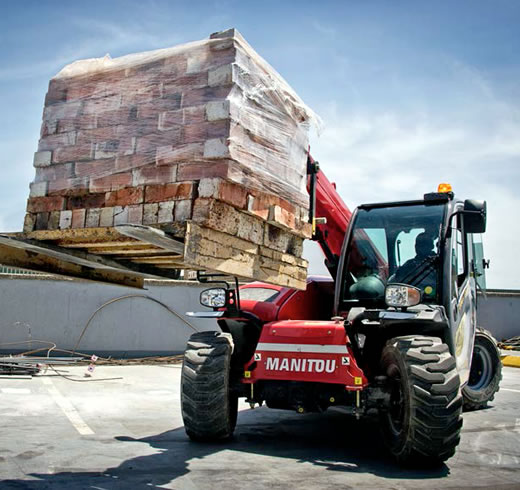

COMPACT TELE 6m x 2.5ton

Technical Spec

  • Max Capacity: 2500kg
  • Max Height: 6000mm
  • Max Reach: 3400mm
  • Load at Max: Reach 800kg
  • Cab Height: 1920mm
  • Width: 1850mm
  • Length: 3900mm
  • Weight: 4700kg

Click on an image below to enlarge

Attachments

  • CONCRETE SKIPS
  • PALLET FORKS
  • MATERIALS LOADING BUCKET
  • SPREADER BEAM 5 – 7.5 M SPAN
  • ACCESS PLATFORM
  • CONFINED AREAS, TAILING DAM LININGS, WAREHOUSING AND INDUSTRIAL

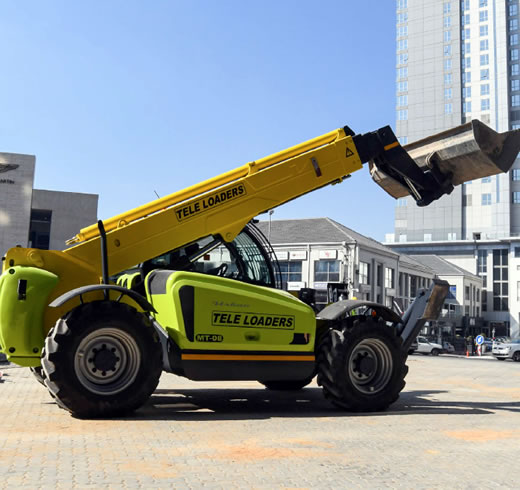

HIGH REACH TELE 14/17m x 4.5ton

High Reach Tele 14m x 4.5ton – Technical Spec

  • Max Capacity: 4500kg
  • Max Height: 14m
  • Max Reach: 9.33m
  • Load at Max: Reach 1500kg
  • Cab Height: 2450mm
  • Width: 2445mm
  • Length ex forks: 6135mm
  • Weight: 11460kg
  • Fuel tank capacity: 135 Lt

Wheelbase x Width = Foorprint
3120mm x 2050mm = 6.4sqm

High Reach Tele 17m x 4.5ton – Technical Spec

  • Max Capacity: 4500kg
  • Max Height: 17m
  • Max Reach: 12.50m
  • Load at Max Reach: 450kg
  • Cab Height: 2450mm
  • Width: 2445mm
  • Length ex forks: 6135mm
  • Weight: 12300kg

Wheelbase x Width = Foorprint
3120mm x 2050mm = 6.4sqm17

Click on an image below to enlarge

Attachments

  • CONCRETE SKIPS
  • PALLET FORKS
  • MATERIALS LOADING BUCKET
  • 5 TON JIB
  • MINING AND CIVILS
  • WAREHOUSING AND INDUSTRIAL
  • PIPE LAYING FORK CLAMP ATTACHMENTS
